100% Virgin PP PE PVC CPVC PVDF Plastic Pall Ring Packing 50mm For Scrubbing

Product Categories
Naike Chemical (Shenzhen) Co., Ltd
Contact Now

100% Virgin PP PE PVC CPVC PVDF Plastic Pall Ring Packing 50mm For Scrubbing

  • 1
  • 2
  • 3

Model Number : NK-PPR

Certification : ISO

Place of Origin : CHINA

MOQ : 1 cubic metre

Price : depends on quantity

Payment Terms : L/C, D/P, T/T, Western Union, paypal

Supply Ability : 300m3 per month

Delivery Time : 10 days for one 20GP container

Packaging Details : woven bag

Product name : pall ring

Material : PP

Diameter : 50mm

Application : adsorption, scrubber

Classfication : Tower packing, random packing, column packing

Contact Now

100% Virgin PP, PE, PVC,CPVC, PVDF Plastic Pall Ring Packing 50mm For Scrubbing

Product description

Plastic pall ring is made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chloridized polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF). It has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60to 150. For these reasons it is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc.

Physical & chemical properties of plastic random packing

Performance / Material PE PP RPP PVC CPVC PVDF
Density (g/cm3) 0.94-0.96 0.89-0.91

0.93-0.94

 1.32-1.44 1.50-1.54 1.75-1.78
Operation Temp. 90 >100 >120 >60 >90 >150
Chemical corrosion resistance Good Good Good Good Good Good
Compression Strength(Mpa) >6.0 >6.5 >7.0 >6.0 >8.0 >10.0

Plastic Tower Packing pall ring Technical data

Spec. D*H*T (mm) Number per m³ Bulk density (kg/m³) Surface area (m²/m³) Free volume (%) F factor (m-1)
Dg16 16*16*1.1 112000 141 188 91 249
Dg25 25*25*1.2 53500 150 175 90 239
Dg38 38*38*1.4 15800 98.0 115 89 220
Dg50 50*50*1.5 6500 74.8 112 90 154
Dg76 76*76*2.6 1930 70.9 73 92 94

Note: The above data are reference to material PP.

Package info

package volume volume/bag
20GP container woven bag 25-28m3 0.1-0.3m3
40GP container woven bag 52-55m3 0.1-0.3m3
40HQ container woven bag 60-65m3 0.1-0.3m3

Product photo

100% Virgin PP PE PVC CPVC PVDF Plastic Pall Ring Packing 50mm For Scrubbing

Plastic Material: 100% virgin PP granules

100% Virgin PP PE PVC CPVC PVDF Plastic Pall Ring Packing 50mm For Scrubbing

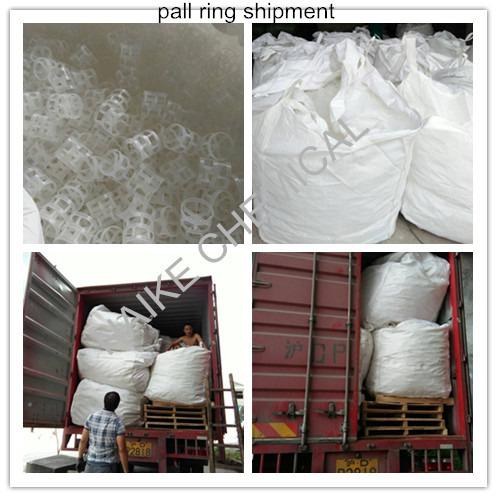

Production and shipment

100% Virgin PP PE PVC CPVC PVDF Plastic Pall Ring Packing 50mm For Scrubbing

100% Virgin PP PE PVC CPVC PVDF Plastic Pall Ring Packing 50mm For Scrubbing

Other plastic random packing products

100% Virgin PP PE PVC CPVC PVDF Plastic Pall Ring Packing 50mm For Scrubbing
