Polypropylene Plastic Random Packing Super Intalox Saddle Ring 50mm 76mm

Product Categories
Naike Chemical (Shenzhen) Co., Ltd
Contact Now

Polypropylene Plastic Random Packing Super Intalox Saddle Ring 50mm 76mm

  • 1
  • 2
  • 3

Model Number : NK-PSS

Certification : ISO

Place of Origin : CHINA

MOQ : 1 cubic metre

Price : depends on quantity

Payment Terms : L/C, D/P, T/T, Western Union, paypal

Supply Ability : 300m3 per month

Delivery Time : 10 days for one 20GP container

Packaging Details : woven bag

Product name : Super intalox saddle ring

Material : PP

Diameter : 25mm, 38mm, 50mm, 76mm

Application : absorption and stripping service

Classfication : Tower packing, random packing, column packing

Contact Now

Polypropylene Plastic Random Packing Super Intalox Saddle Ring 25mm, 38mm, 50mm, 76mm

Product description

Plastic Super Intalox is a kind of advanced packing which is made of heat resistant and chemical corrosion resistant plastics, such as PE, PP, RPP, PVC, CPVC and PVDF. So it is economical and has versatile industry standard with well-known performance characteristics.

Advantage:Low pressure drop, high flux, high efficiency, easy to handle.


Application:Absorption, scrubbing, stripping services, Pulp and paper service, such as bleach plant absorbers, versatile alternative to ceramic saddle.

Physical & chemical properties of plastic random packing

Performance / Material PE PP RPP PVC CPVC PVDF
Density (g/cm3) 0.94-0.96 0.89-0.91

0.93-0.94

 1.32-1.44 1.50-1.54 1.75-1.78
Operation Temp. 90 >100 >120 >60 >90 >150
Chemical corrosion resistance Good Good Good Good Good Good
Compression Strength(Mpa) >6.0 >6.5 >7.0 >6.0 >8.0 >10.0

Main technical index:

Name Normal
mm		 Diameter*Height*
Thickness mm		 Surface area
m2/m3		 Void space
%		 Bulk density
kg/m3		 No.elements
per/m3		 Packing factor
m-1
Intalox saddles ø25 25*13*1.2 288 85 102 97680 467
ø38 38*19*1.2 265 95 91 25200 309
ø50 50*25*1.5 250 96 75 9400 282
ø76 76*38*3.0 200 97 59 3700 220

Note: The above data are reference to material PP.

Package info

package volume volume/bag
20GP container woven bag 25-28m3 0.1-0.3m3
40GP container woven bag 52-55m3 0.1-0.3m3
40HQ container woven bag 60-65m3 0.1-0.3m3

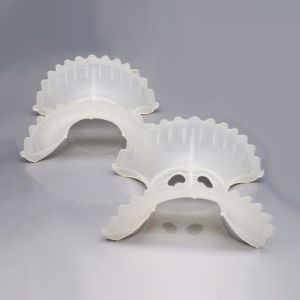

Product photo

Polypropylene Plastic Random Packing Super Intalox Saddle Ring 50mm 76mm

Plastic Material: 100% virgin PP granules

Polypropylene Plastic Random Packing Super Intalox Saddle Ring 50mm 76mm

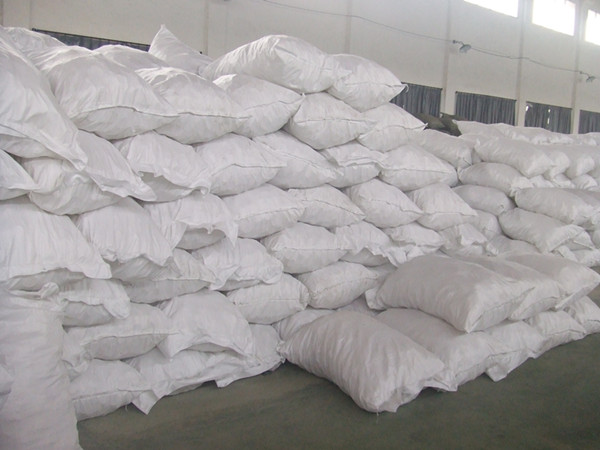

Production and shipment

Polypropylene Plastic Random Packing Super Intalox Saddle Ring 50mm 76mm

Other plastic random packing products

Pall ring, raschig ring, tri-pack, saddle ring, super intalox saddle ring, polyhedral hollow ball,

hollow ball, cascade ring, tellerette ring, vsp ring, snowflake ring, lanpac packing

Polypropylene Plastic Random Packing Super Intalox Saddle Ring 50mm 76mm
