Plastic Teller Rosette Rings Random Tower Packing Random Packing Plastic Teller Rosette Ring for Scrubbing

Brand Name : NAIKE

Place of Origin : Jiangxi, China

MOQ : 1.0 Cubic Meter/Cubic Meters (Min. Order)

Price : CN¥1,400.76 - CN¥2,311.26

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A

Supply Ability : 3000 Cubic Meter/Cubic Meters per Year

Delivery Time : 5-8 work day

Packaging Details : 25kgs/50kgs compound plastic bag,enhanced plastic super sack or carton.Other packing is available upon your request.

Model Number : TR-0002

Certification : ISO

Processing Service : Moulding, Cutting

other names : tellerette ring, rosette ring

materail : PP, PVDF, PE, PVC, CPVC, RPP

color : white, black, grey, transparent

application : air scrubber, stripping service, absorption

classification : random packing, tower packing, air scrubber packing

Contact Now

Description

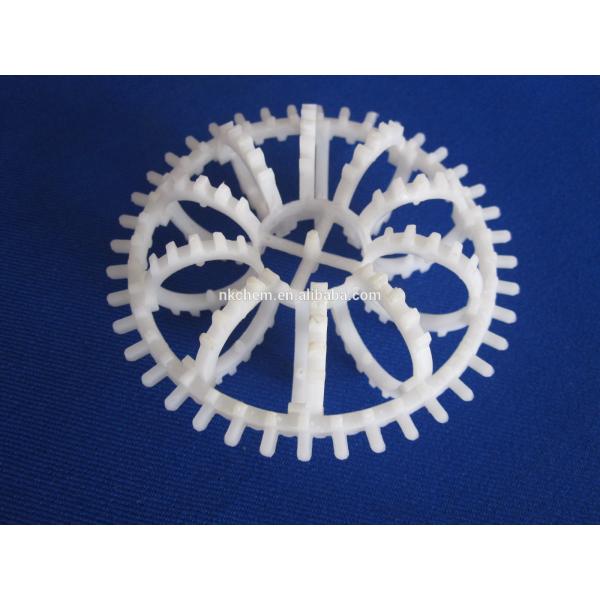

Plastic Rosette Ring is made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chloridized polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF). It has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60to 150. For these reasons it is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc.
Plastic Teller Rosette Rings Random Tower Packing Random Packing Plastic Teller Rosette Ring for Scrubbing
Plastic Teller Rosette Rings Random Tower Packing Random Packing Plastic Teller Rosette Ring for Scrubbing
Plastic Teller Rosette Rings Random Tower Packing Random Packing Plastic Teller Rosette Ring for Scrubbing
Product Properties
Spec.
D*H*T(mm)
Number per m³
Bulk density (Kg/m³)
Surface area (m²/m³)
Free volume (%)
Dg255-ring
25*9*1.5*2
170000
90
195
82
Dg479-ring
47*19*3*3
32500
111
185
88
Dg519-ring
51*19*3*3
23500
103
180
98
Dg5912-ring
59*19*3*3
17500
72
150
92
Dg7312-ring
73*28*3*4
8000
80
127
89
Dg9518-ring
95*37*3*6
3900
78
94
90
Dg14520-ring
145*48*3*6
1100
48
65
95

Plastic Tellerate Rosette Features:

Tellerette 2K Tower Packing maintains good liquid distribution through packing depths in excess of 10 metres. Good initial liquid distribution is essential. Spray headers using full cone spray nozzles arerecommended.

Features:

Improved mass transfer efficiency. Large voidage. Low pressure drop. Low mass-transfer unit height. Uniform gas and liquid distribution. High mass transfer efficiency. Suitable temperature ranges from 60 °C to 150 °C. Chemical stability.
